Beschrijving
| range of product |
Preventa Safety detection
|
|
|---|---|---|
| product or component type |

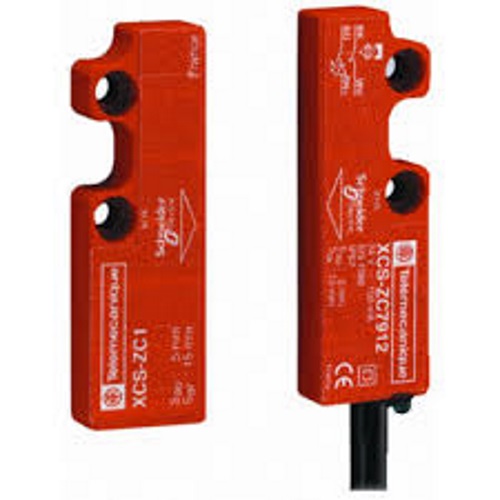

Coded magnetic switch
|
|
| component name |
XCSDMC
|
|
| design |
Rectangular, compact
|
|
| size |
51 x 16 x 7 mm
|
|
| contacts type and composition |
1 NC + 1 NO
|
|
| contact operation |
Staggered
|
|
| material |
Plastic
|
|
| electrical connection |
Pre-cabled
|
|
| cable composition |
4 x 0.25 mm²
|
|
| cable length |
6.56 ft (2 m)
|
|
| number of poles |
2
|
|
| local signalling |
1 LED
|
|
| approach directions |
3 directions
|
|
| System Voltage |
24 V DC
|
|
| [Ui] rated insulation voltage |
100 V DC
|
| [Sa] assured operating distance |
0.2 in (5 mm)
|
|
|---|---|---|
| [Sar] assured tripping distance |
0.59 in (15 mm)
|
|
| [Ie] rated operational current |
<= 100 mA
|
|
| [Uimp] rated impulse withstand voltage |
2.5 kV conforming to EN/IEC 60947-5-1
|
|
| resistance across terminals |
57 Ohm
|
|
| short-circuit protection |
500 mA external cartridge fuse type gG (gl)
|
|
| contacts material |
Rhodium
|
|
| electrical durability |
1200000 cycles
|
|
| maximum switching voltage |
DC
|
|
| switching capacity in mA |
5…100 mA
|
|
| insulation resistance |
1000 MOhm
|
|
| breaking capacity |
<= 3 VA
|
|
| switching frequency |
150 Hz
|
|
| safety level |
Can reach category 4 (with the appropriate monitoring system and correctly wired) conforming to EN/ISO 13849-1
Can reach PL = e (with the appropriate monitoring system and correctly wired) conforming to EN/ISO 13849-1 Can reach SIL 3 (with the appropriate monitoring system and correctly wired) conforming to EN/IEC 61508 |
|
| safety reliability data |
B10d = 50000000 (value given for a life time of 20 years limited by mechanical or contact wear)
|
|
| enclosure material |
Thermoplastic PBT
|
|
| cable material |
PVC
|
|
| depth |
0.28 in (7 mm)
|
|
| height |
2.01 in (51 mm)
|
|
| width |
0.63 in (16 mm)
|
|
| product weight |
0.22 lb(US) (0.101 kg)
|
